Electric Bike Lift

Models

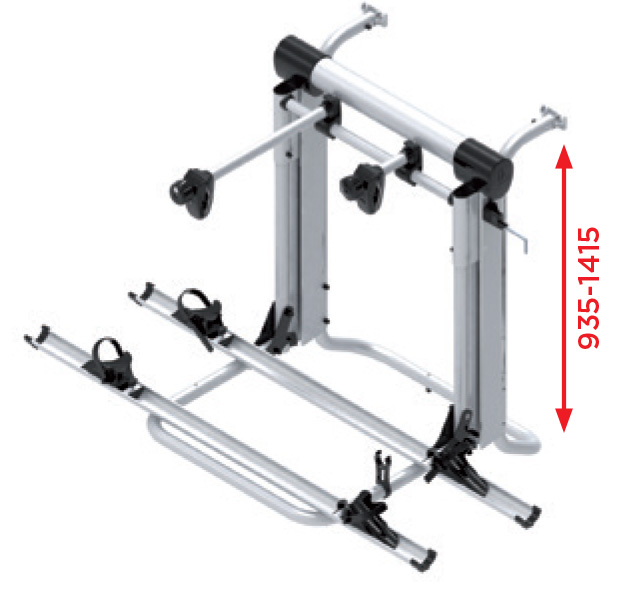

Bike lift Standard

Item number BKL-STD

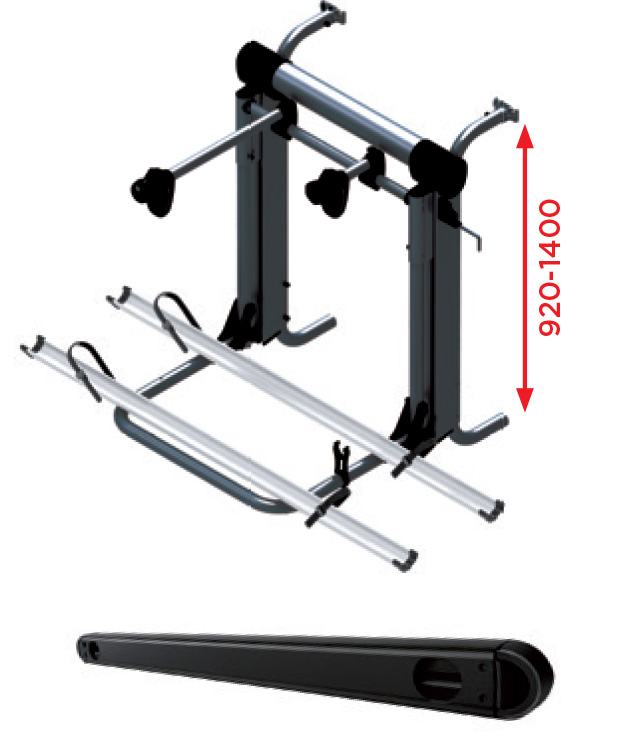

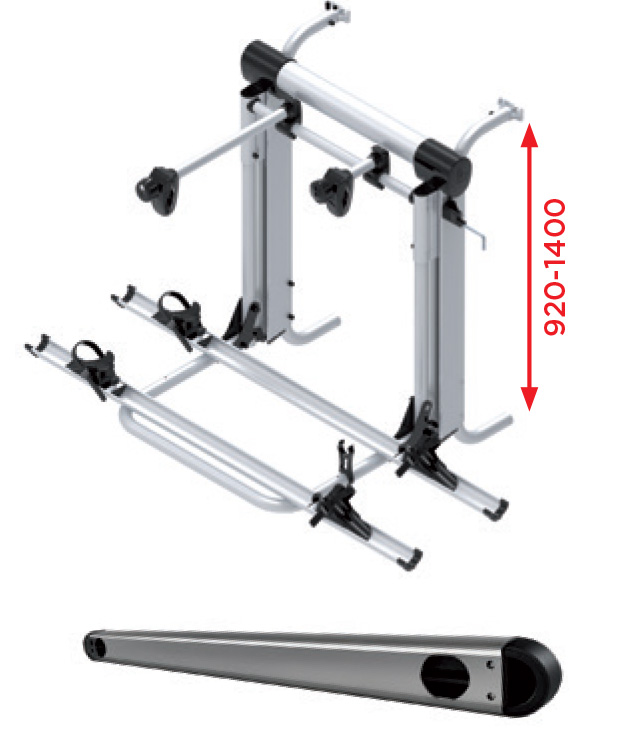

Bike lift standard rail

Item number BKL-STD-Rail

For vehicles equipped with lower mounting rail (rail not included)

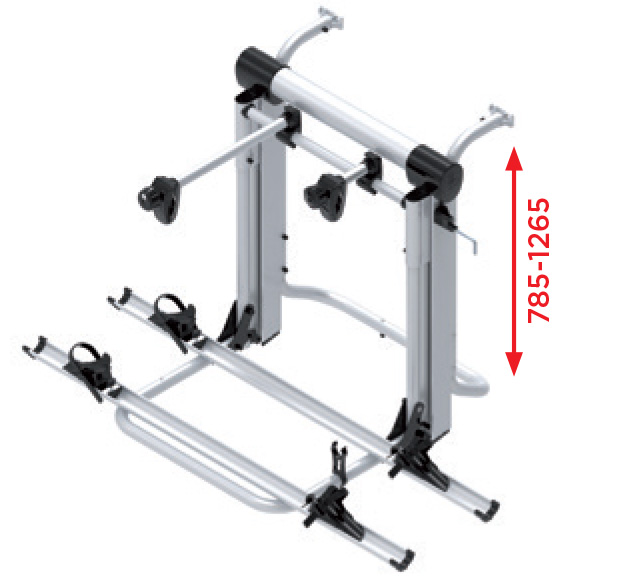

Bike lift short

Item number BKL-SHO

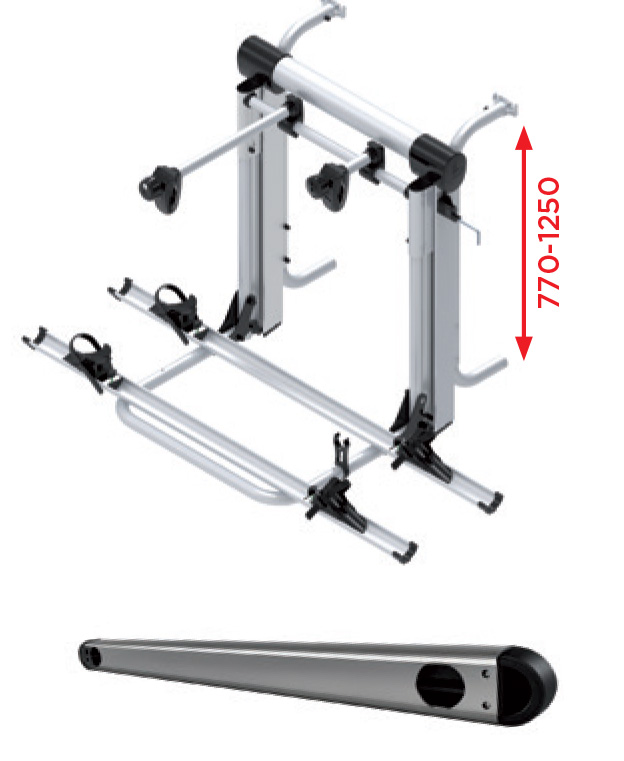

Bike lift short rail

Item number BKL-SHO-RAIL

For vehicles equipped with lower mounting rail (rail not included)

Operation

Step by step

Bediening

Step by step

Parts

Easily adjust the end positions of the 12V motor

Onderdeel 1

Adapt the Bike Lift to your motorhome: you can easily adjust the end position of the motor to reflect the mountaing height of the Bike Lift.

Manual override system

Onderdeel 2

The crank, supplied as standard, allows the Bike Lift to remain fully operational, even in the event of a power outage.

Double safety against unwanted lowering while driving

Onderdeel 3

The Bike Lift is standard supplied with a manual circuit breaker and an axle for mechanical locking.

Sturdy and simple platform locking

Onderdeel 4

The new, smart platform locking system prevents it from moving up during driving.

Extra safety while driving

Onderdeel 5

When there are no bikes on the Bike Lift, the platform can be foleded easily and securely, to ensure optimal driving comfort.

Adjustable wheel holders

Onderdeel 6

You can easily choose the position of the wheel holders and then fasten the bkes securely with the user-friendly wheel straps.

Moveable bike holders

Onderdeel 7

The bike holders are adjustable from left to right and up and down. The bike holders are even lockable (standard for longest bike holder, optional for others)

Allows for higher mounting on vehicle

Onderdeel 8

Some vehicules require the bike-carrier to be mounted higher up, which makes loading and unloading more difficult. The Bike Lift's fully automated platform lowering capability offers the perfect solution.

1

Easily adjust the end positions of the 12V motor

Stap 1

The motor lifts the bikes up without any human effort. You can even adjust to the perfect lowest position of the Bike Lift.

2

Manual override system

Stap 2

A power outage can’t stop you enjoying your bikes! The standard supplied crank makes it possible to bring the platform down

3

Double safety against unwanted lowering while driving

Stap 3

A manual circuit breaker and axle for mechanical locking prevents unwanted lowering of the Bike Lift while driving the vehicle.

4

Smart platform lock

Stap 4

The sturdy smart platform locking system prevents that the platform jumps up during driving.

5

Platform holder

Stap 5

The platform can be folded easily and securely to ensure optimal and safe driving or when the Bike Lift is not in use.

6

Adjustable wheel holders

Stap 6

Choose the position of the wheel holders and fasten the bikes securely with the integrated wheel straps.

7

Adaptable bike holders

Stap 7

The bike holders are adjustable to every bike frame. They are even lockable with our optional accessory.

8

Adjustable mounting points

Stap 8

Allows an installation on different types of vehicles. The Bike Lift can even be mounted on standard fixation points or replace a standard rack.

Dimensions

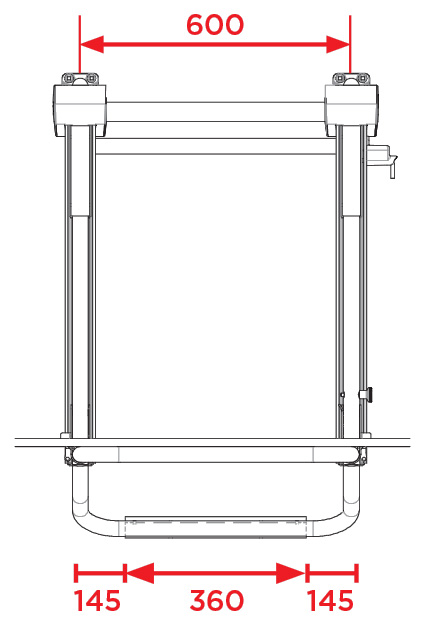

Front

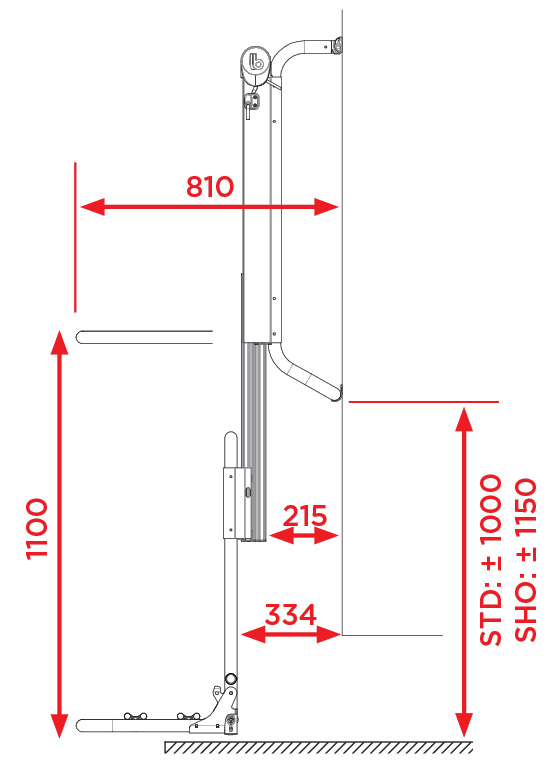

Side

Downloads

  • Always a solution tailored to your needs
  • Easy to use
  • Belgian quality, strong service
  • Patented system
